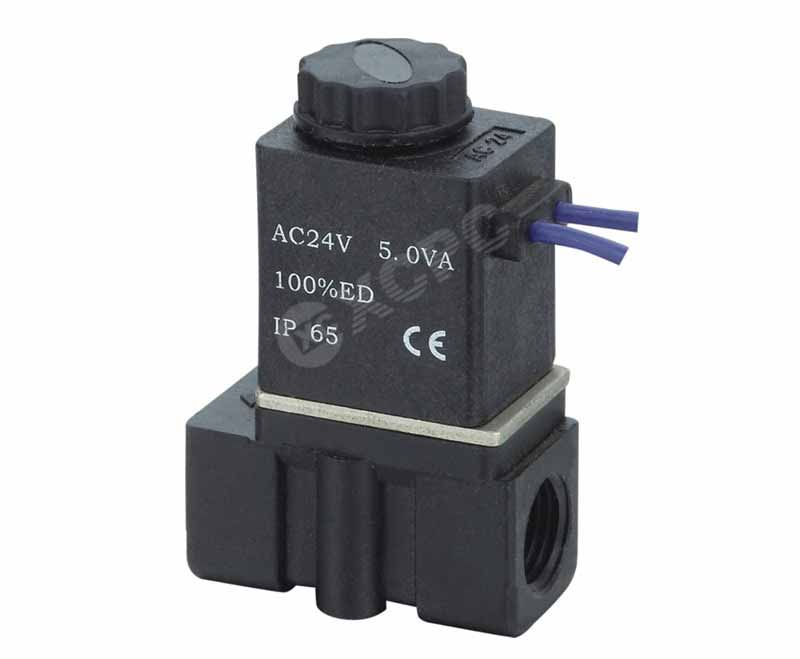

2P Series 2/2 Way Solenoid Valve
SERIES: 2P Series 2/2 Way Solenoid Valve
2P Series 2/2 Way Solenoid Valve
FEATURES
 Working Medium
|
Air,Water,Oil,gas
|
|
Motion Pattern
|
D irect Drive Type
|
|
Type
|
Normal Close Type
|
|
Aperture of Flow Rate(mm)
|
2.5
|
|
CV Value
|
0.23
|
|
Operation Fluid Viscosity
|
20 CST以下 (Below)
|
Ordering Code
Specification
|
Model
|
2P025-06
|
2P025-08
|
|
Working Medium
|
Air,Water,Oil,gas
|
|
|
Motion Pattern
|
D irect Drive Type
|
|
|
Type
|
Normal Close Type
|
|
|
Aperture of Flow Rate(mm)
|
2.5
|
|
|
CV Value
|
0.23
|
|
|
Joint Pipe Bore
|
1/8″
|
1/4″
|
|
Operation Fluid Viscosity
|
20 CST以下 (Below)
|
|
|
Working-pressure
|
0~0.7 MPa
|
|
|
Max. Pressure Resistance
|
1.0 MPa
|
|
|
Operating Temperature
|
-5~80℃
|
|
|
Voltage Range
|
±10%
|
|
|
Material of Body
|
Engineering Plastic
|
|
|
Material of Oil Seal
|
NBR or VITON
|
|
Overall Dimensions
