4F/FV Series Foot Valve
SERIES: 4F/FV Series Foot Valve
4F/FV Series Foot Valve
FEATURES
 Working Medium
|
40 Micron Filtered Air
|
|
Motion Patten
|
Direct Drive Type
|
|
Working-pressure Range
|
0.15~0.9MPa
|
|
Operating Temperature Range
|
0~60℃
|
Ordering Code
Specification
|
Model
|

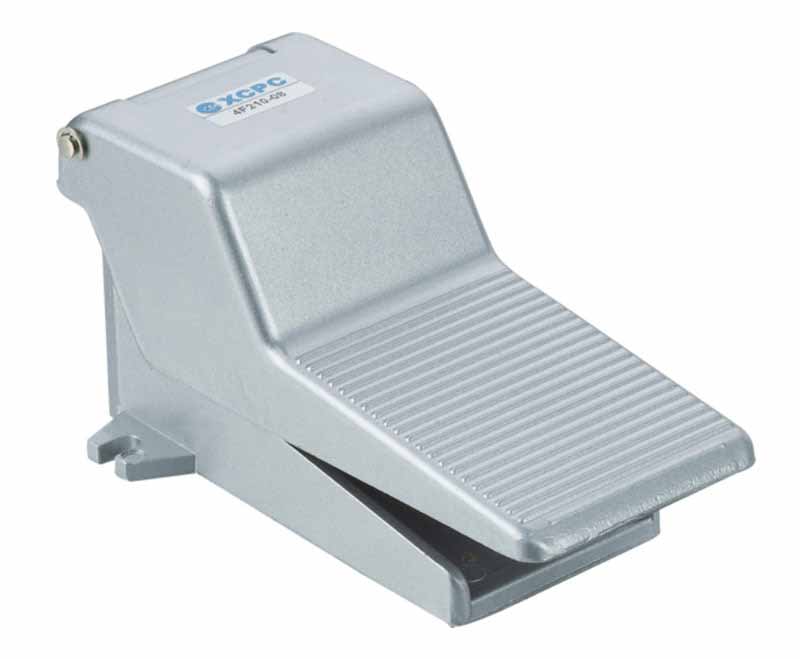

4F210-06
|

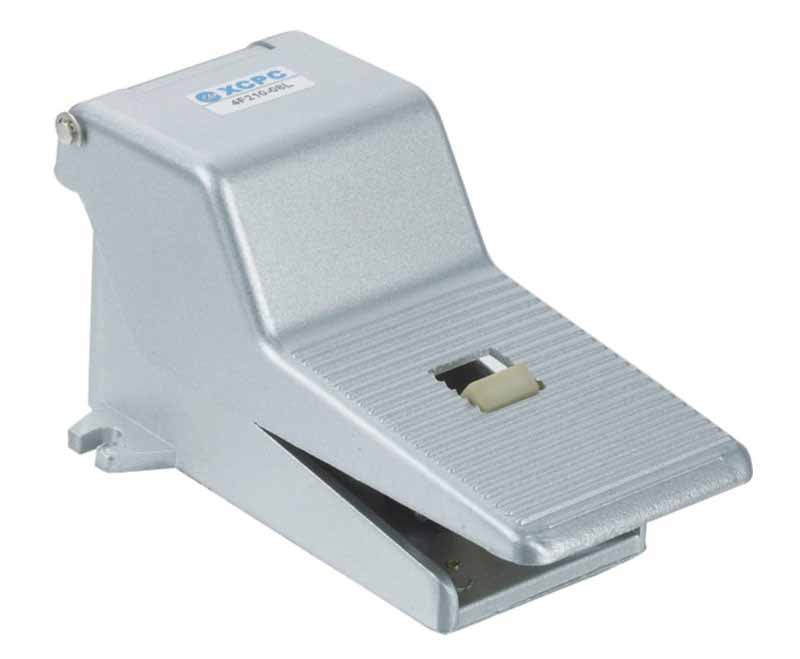

4F210-08L
|
4F210-08G
|

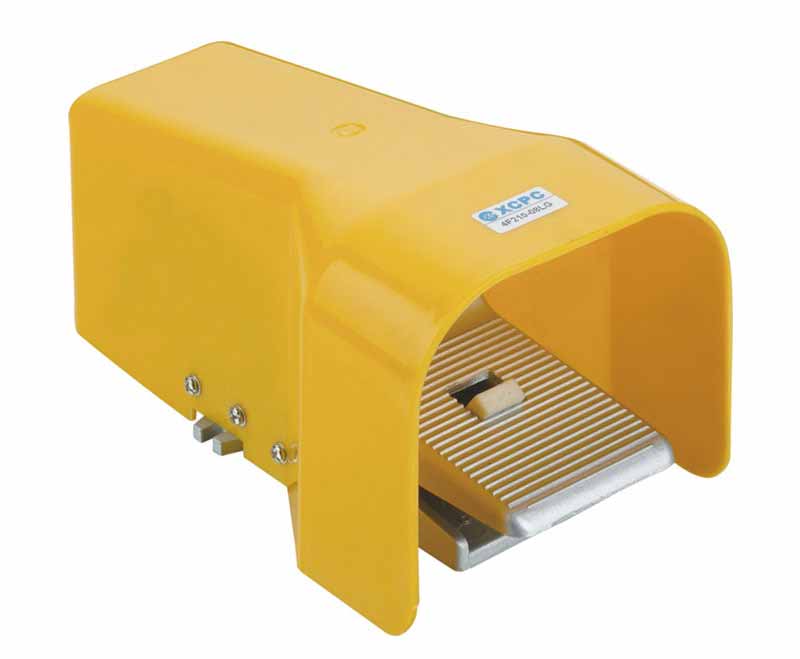

4F210-08LG
|

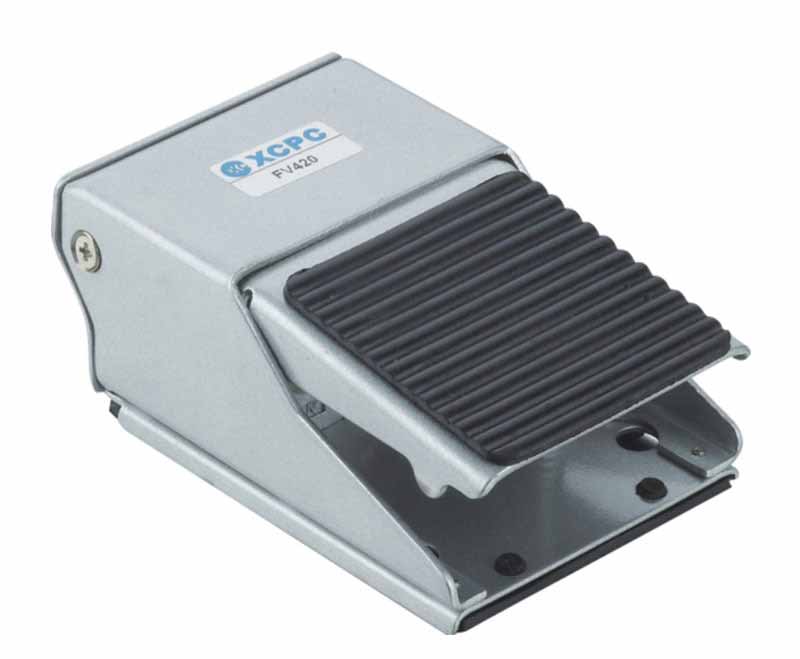

FV420
|
FV320
|
|
Working Medium
|
40 Micron Filtered Air
|
|||||
|
Position and Way Number
|
Two-position Five-way
|
Two-position Four-way
|
Two-position Three-way
|
|||
|
Motion Patten
|
Direct Drive Type
|
|||||
|
Port Size
|
Air Inlet=Air Outlet=Exhaust=G1/4"
|
Air Inlet=Air Outlet=G1/4"
Exhaust=G1/8" |
||||
|
Working-pressure Range
|
0.15~0.9MPa
|
|||||
|
Operating Temperature Range
|
0~60℃
|
|||||

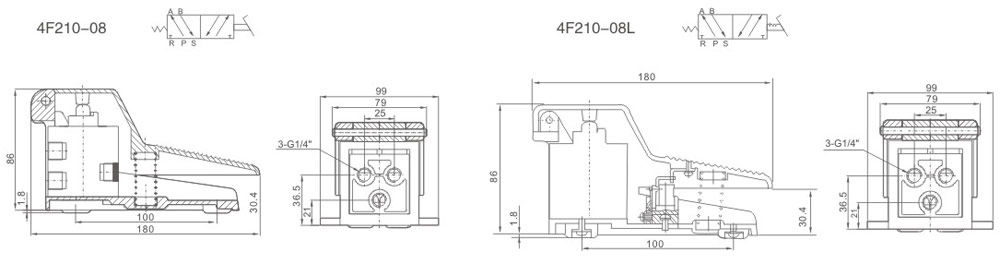

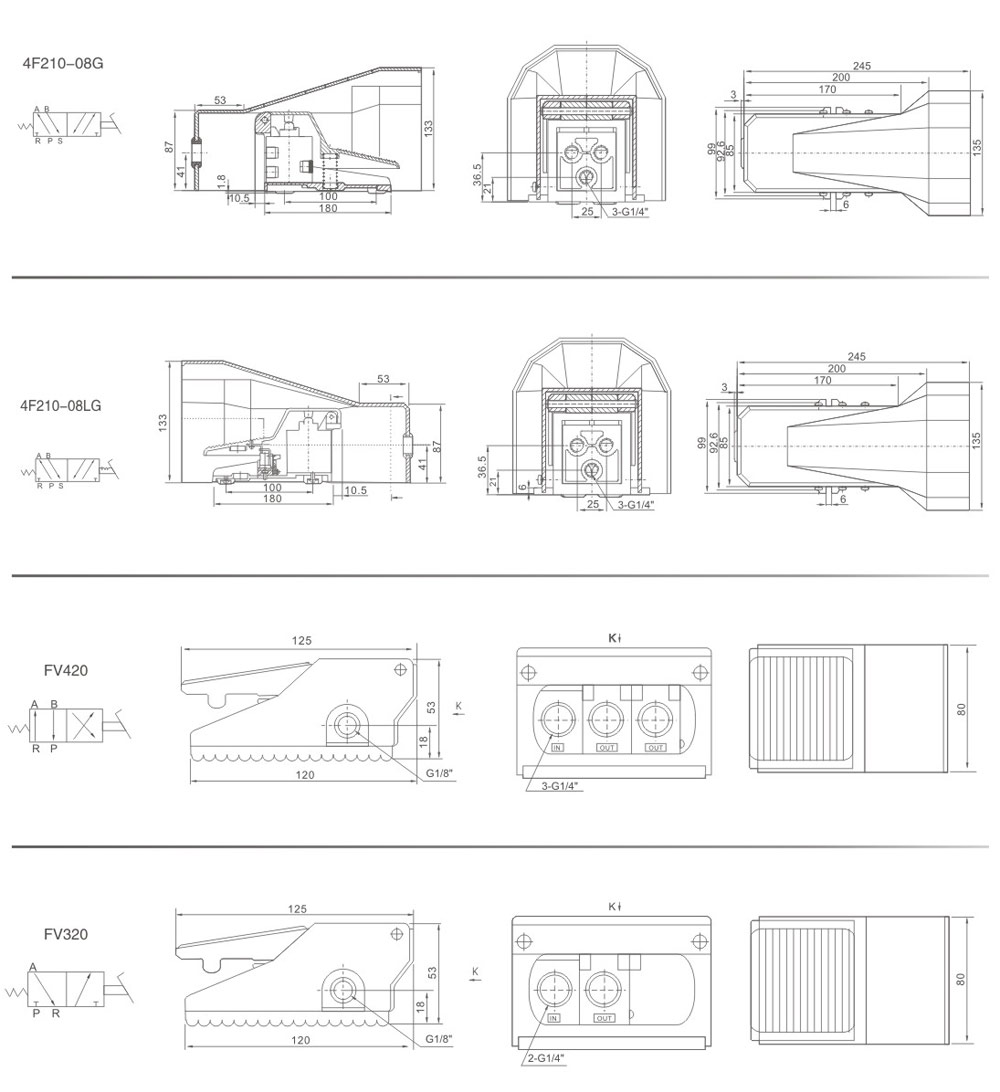

Overall Dimensions
