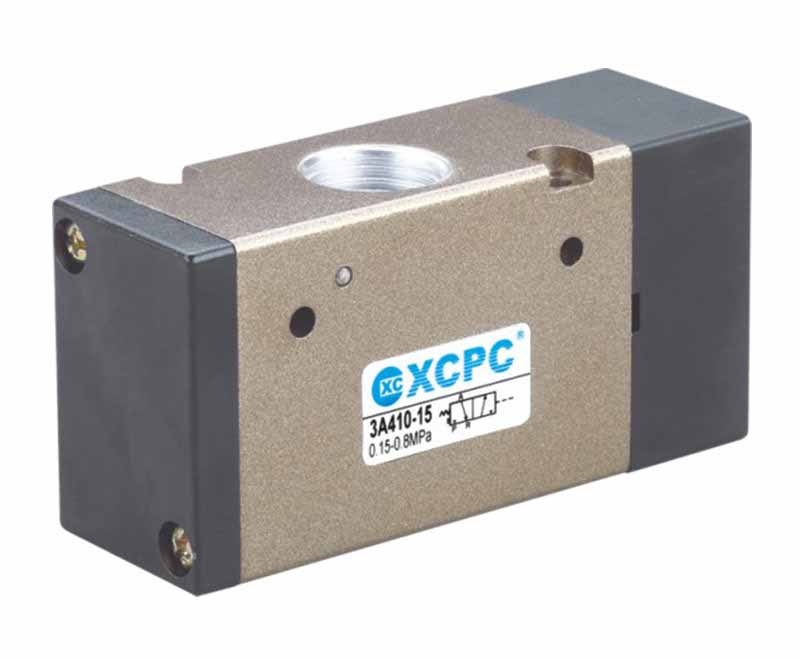

4V/3V 400,4A/3A 400 Series
SERIES: 4V/3V ,4A/3A Solenoid/Pneumatic Control Valve
4V/3V 400,4A/3A 400 Series
FEATURES
 Effective Sectional Area
|
50mm²(CV=2.79)
|
|
Joint Pipe Bore
|
Air Inlet=Air Outlet=Exhaust=G1/2"
|
|
Working Medium
|
40 Micron Filtered Air
|
|
Motion Pattern
|
Inner Guide Type
|
|
Working-Pressure
|
0.15~0.8MPa
|
|
Max.Pressure Resistance
|
1.2MPa
|
SUB-SERIES
Ordering Code
Specification
|
Model
|
4V410-15
|

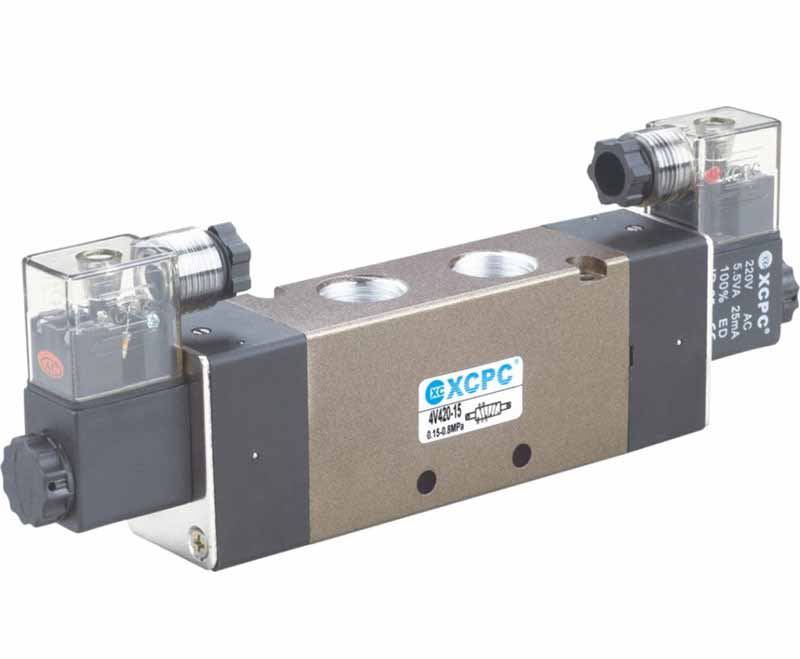

4V420-15
|
4V430C-15
|
4V430E-15
|
4V430P-15
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

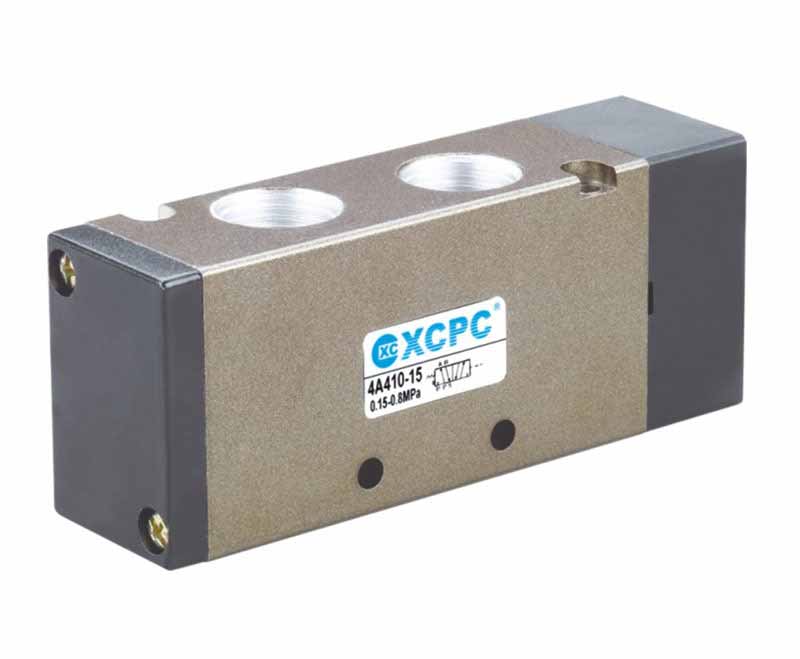

4A410-15
|
4A420-15
|
4A430C-15
|
4A430E-15
|
4A430P-15
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Position and Way NO.
|
Two-position Five-way
|
Three-position Five-way
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Sectional Area
|
50mm²(CV=2.79)
|
30mm²(CV=1.68)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overall Dimensions
Other info
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
|
1
|
Connector
|
4
|
Active Amature
|
7
|
Body
|
10
|
Screw
|
13
|
O-Ring
|
16
|
Spring
|
19
|
Spring
|
|
2
|
Nut
|
5
|
Steel Part
|
8
|
Wearing
|
11
|
Spring
|
14
|
Spool
|
17
|
Pin
|
20
|
Side Cover
|
|
3
|
Coil
|
6
|
Piston
|
9
|
End Cap
|
12
|
Seal ring
|
15
|
O-Ring
|
18
|
Spring Seat
|
21
|
Spring Seat
|
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
|
1
|
Air control cover
|
4
|
Valve body
|
7
|
Spring
|
10
|
Spring Seat
|
|
2
|
Piston
|
5
|
Spool
|
8
|
Rear cover
|
11
|
C-type buckle
|
|
3
|
Screw
|
6
|
O-Ring
|
9
|
Back seat
|
|
|
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
|
1
|
Washer
|
4
|
O-Ring
|
7
|
Spool
|
10
|
Spring
|
13
|
Screw
|
16
|
Screw
|
19
|
Coil
|
|
2
|
Pin
|
5
|
Body
|
8
|
O-Ring
|
11
|
Seal
|
14
|
Wearing
|
17
|
O-Ring
|
20
|
Nut
|
|
3
|
Spring
|
6
|
O-Ring
|
9
|
Body
|
12
|
End Cap
|
15
|
Piston
|
18
|
Active Amature
|
21
|
Connector
|
|
NO
|
Designation
|
NO
|
Designation
|
NO
|
Designation
|
|
1
|
Air control cover
|
4
|
Valve body
|
7
|
Spring
|
|
2
|
Piston
|
5
|
Spool
|
8
|
Rear cover
|
|
3
|
Screw
|
6
|
O-Ring
|
|
|
