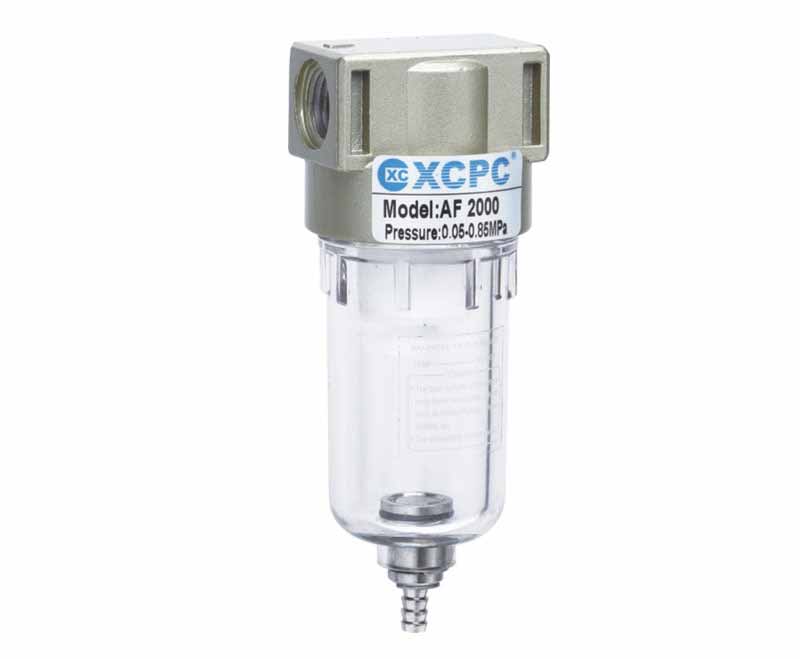

AF,BF(Air filter)
SERIES: AC,BC Series F.R.L
AF,BF(Air filter)
FEATURES
 Operating Fluid
|
Air
|
|||
|
Range of Adjustable Pressure
|
0.05-0.85MPa
|
|||
|
Max.Adjustable Pressure
|
0.95MPa
|
|||
|
Ensured Pressure Resistance
|
1.5MPa
|
|||
|
Operating Temperature Range
|
5-60℃
|
|||
|
Material OF Body
|
Aluminum Die-casting Forming
|
|||
SUB-SERIES
Ordering Code
Specification
| Model |
AR1500 |
AR2000 |
BR2000 |
BR3000 | BR4000 |
| Operating Fluid | Air | ||||
| Port Size | G1/8" | G1/4" | G1/4" | G3/8" | G1/2" |
| Range of Adjustable Pressure | 0.05-0.85MPa | ||||
| Max.Adjustable Pressure | 0.95MPa | ||||
| Ensured Pressure Resistance | 1.5MPa | ||||
| Operating Temperature Range | 5-60℃ | ||||
| Weight | 0.20KG | 0.23KG | |||
| Material OF Body | Aluminum Die-casting Forming | ||||
Overall Dimensions
