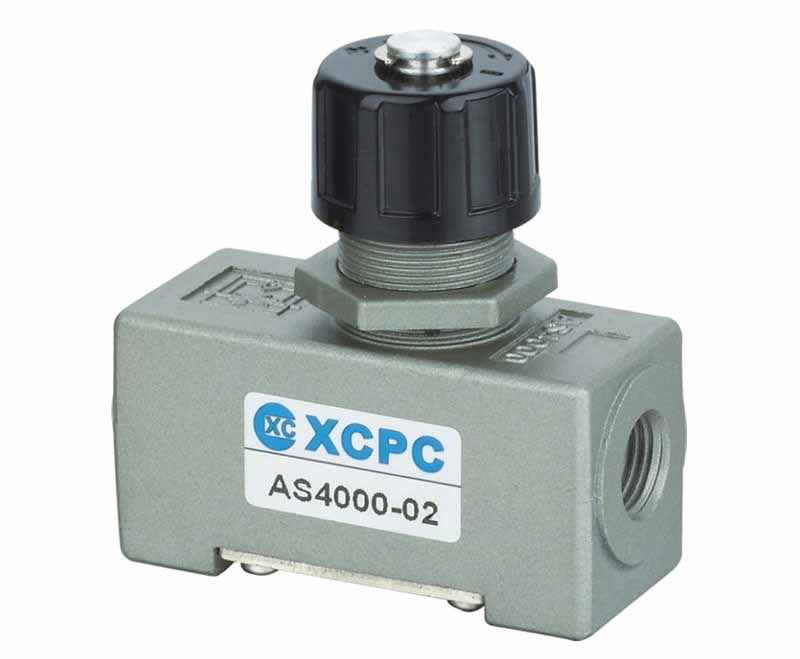

AS Series Eheck Valve
SERIES: AS Series Eheck Valve
AS Series Eheck Valve
FEATURES
 Ensured Pressure Resistance
|
1.5MPa
|
|
Highest Working Pressure
|
1.0MPa
|
|
Lowest Working Pressure
|
0.05MPa
|
|
Ambient and Media Temperature
|
5~50℃
|
|
Regulated Flow Turns
|
8~9
|
Ordering Code
Specification
|
Model
|
AS4000-02
|
AS4000-03
|
AS4000-04
|
|
|
Port Size
|
G1/4"
|
G3/8"
|
G1/2"
|
|
|
Free Flow
|
Flow(L/min)
|
1670
|
||
|
Effective Section Area(mm²)
|
25.5
|
|||
|
Controlled Flow
|
Flow(L/min)
|
1670
|
||
|
Effective Section Area(mm²)
|
25.5
|
|||
|
Ensured Pressure Resistance
|
1.5MPa
|
|||
|
Highest Working Pressure
|
1.0MPa
|
|||
|
Lowest Working Pressure
|
0.05MPa
|
|||
|
Ambient and Media Temperature
|
5~50℃
|
|||
|
Regulated Flow Turns
|
8~9
|
|||

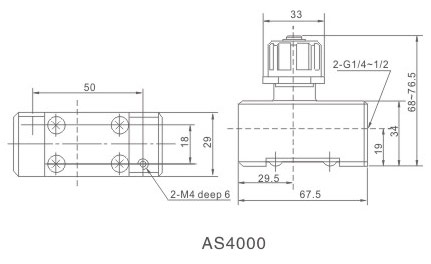

Overall Dimensions
