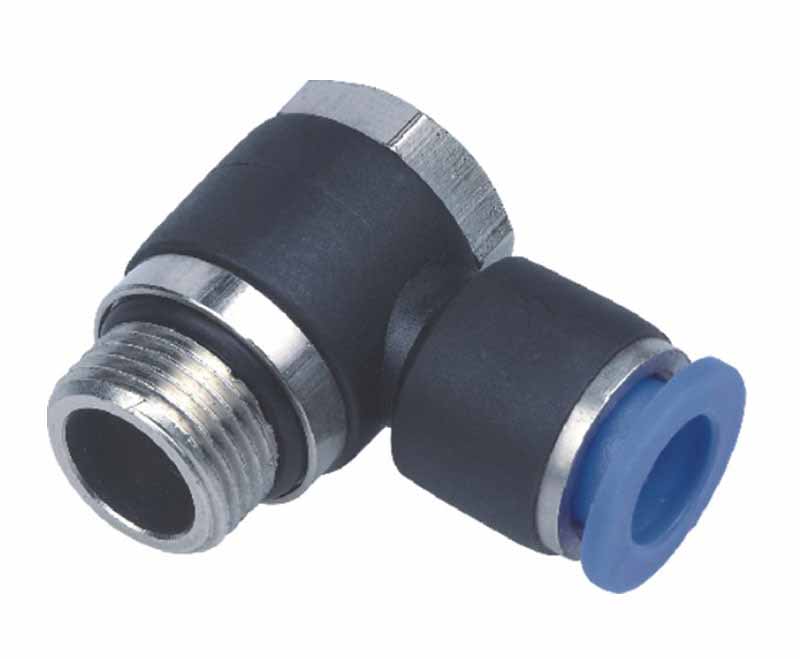

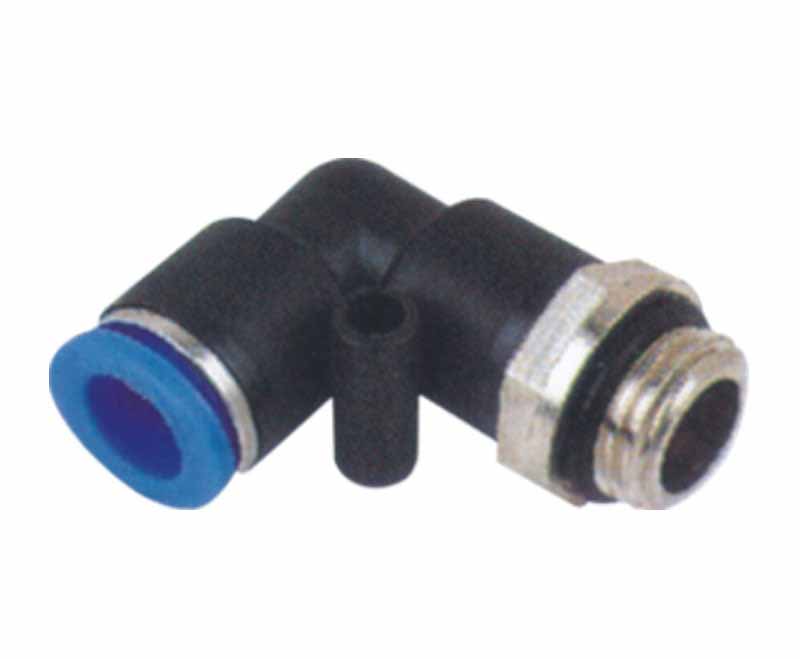

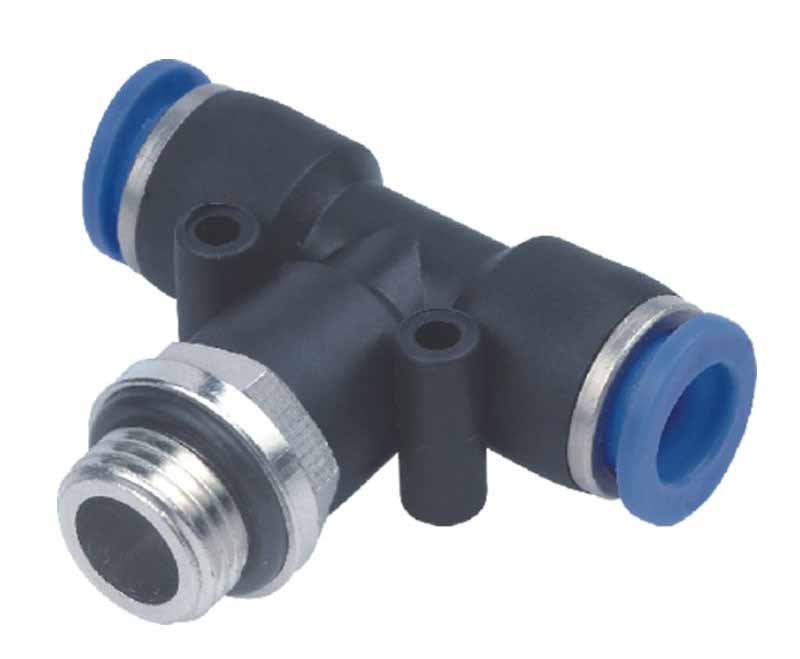

Pneumatic Tube Fittings With G Thread(O-Ring)
SERIES: Pneumatic Tube Fittings With G Thread(O-Ring)
Pneumatic Tube Fittings With G Thread(O-Ring)
FEATURES
|
One-Touch
push-to-connect configuration allows an instant tubing
connection.Smooth-Edge release sleeve design facilitates a quick tubing
disconnection.
|

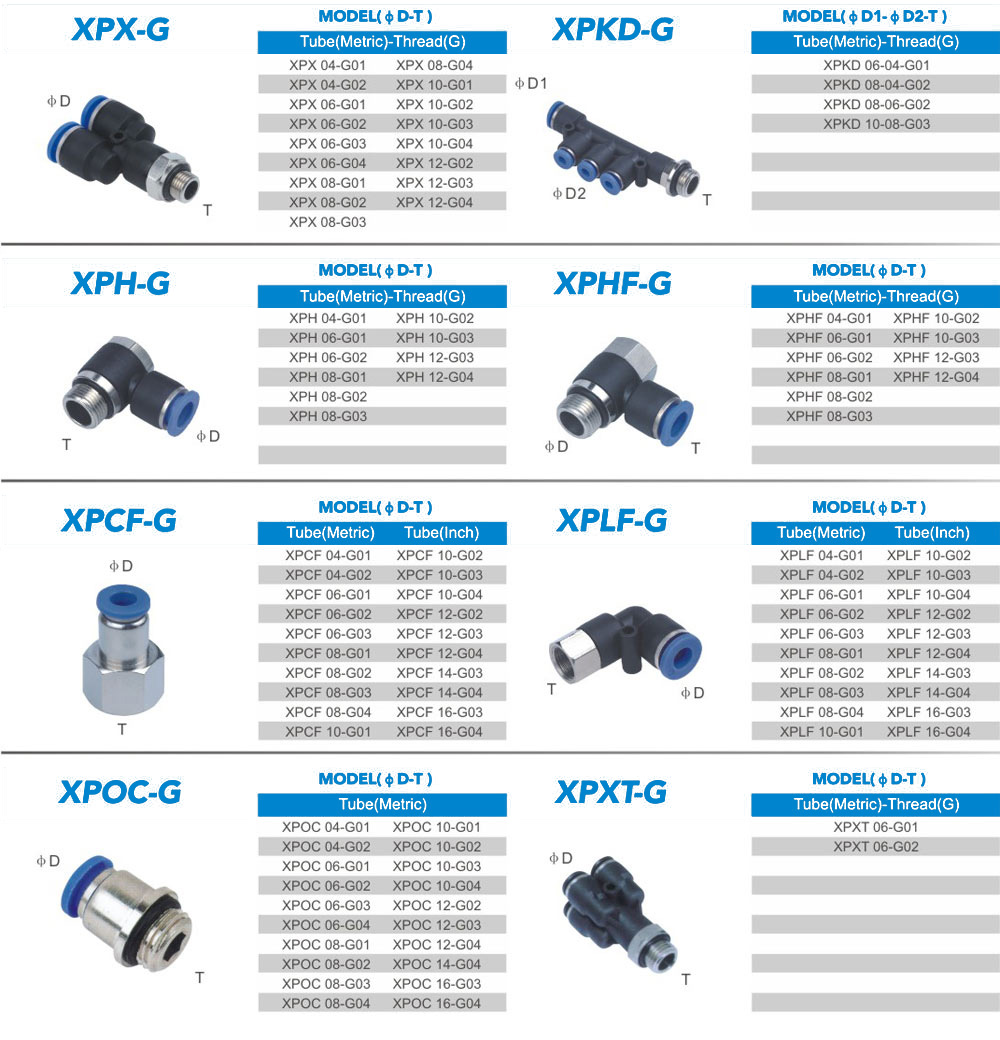

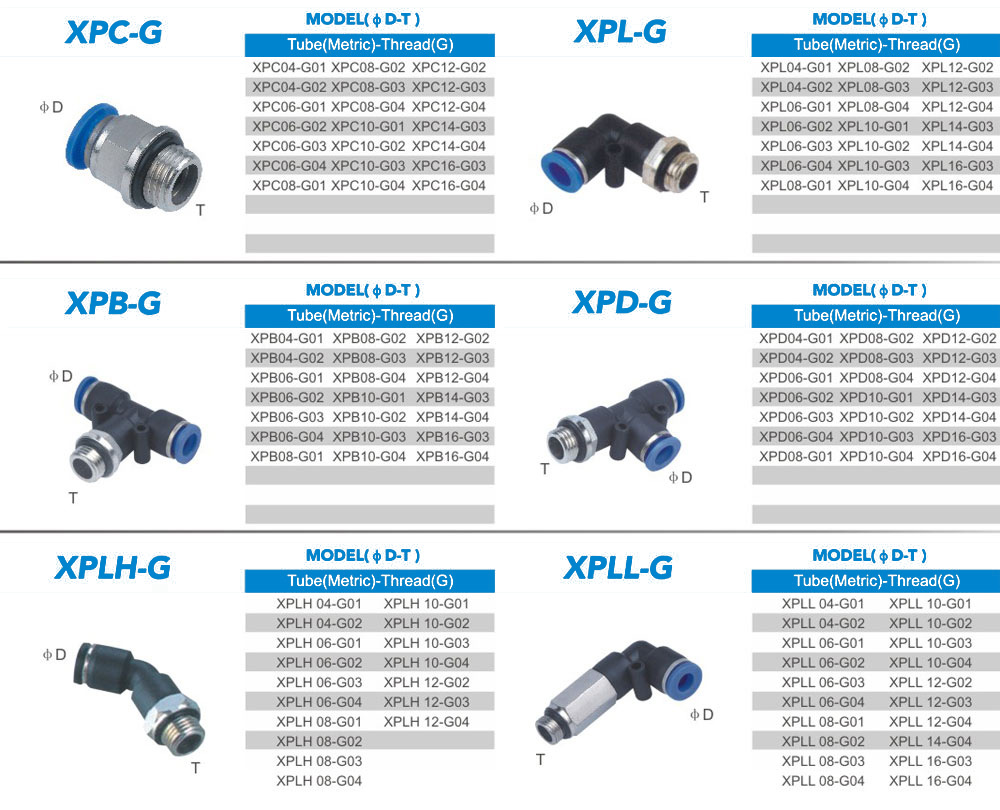

Ordering Code
Specification
|
Fliud Type
|
Air,Vacuum
|
|
Operating Pressure
|
0~10.2Kgf/cm2(0~1.0Mpa)
|
|
Negative Pressure
|
-750mm Hg(10Torr)
|
|
Operating Temperature Range
|
0~60℃
|
|
Tube Material
|
Nylon and Polyurethane
|
(1)Model Type
(2)Tube Outer Diameter(ΦD)
|
||||||||||||||||||||||||||||||||||||
(4)Body Color Code
NO Code:Black Color C:Gery Color
Taper Pipe Thread
|
|||||||||||||||
|
G(PF)Thread
|
||||
|
Code
|
G01
|
G02
|
G03
|
G04
|
|
Size
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
|
NPT Thread
|
||||
|
Code
|
N1
|
N2
|
N3
|
N4
|
|
Size
|
NTP1/8"
|
NTP1/4"
|
NPT3/8"
|
NPT1/2"
|
