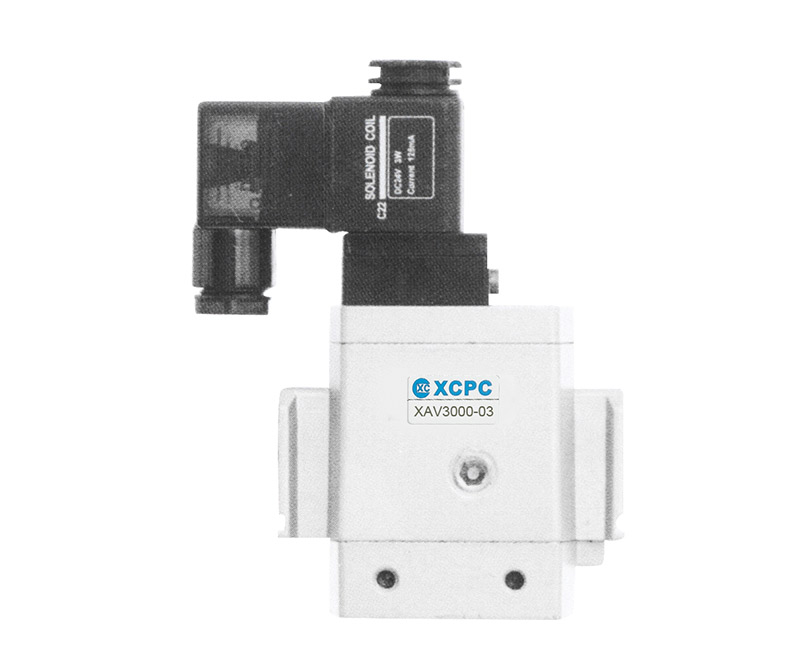

XAV 2000-5000 Series Slow Staet Valve
SERIES: XAV 2000-5000 Series Slow Staet Valve
XAV 2000-5000 Series Slow Staet Valve
FEATURES
 Applicable Pressure Range
|
0.3~1.0MPa
|
|||||||
|
Ambientand Fluid Temperature
|
0~60℃
|
|||||||
|
Coil voltage rating
|
DC24V、12V、AC220、110V
|
|||||||
|
Coil insulation class
|
B level or the same level
|
|||||||
|
DC/Consumed power DC
|
3W
|
|||||||
Ordering Code

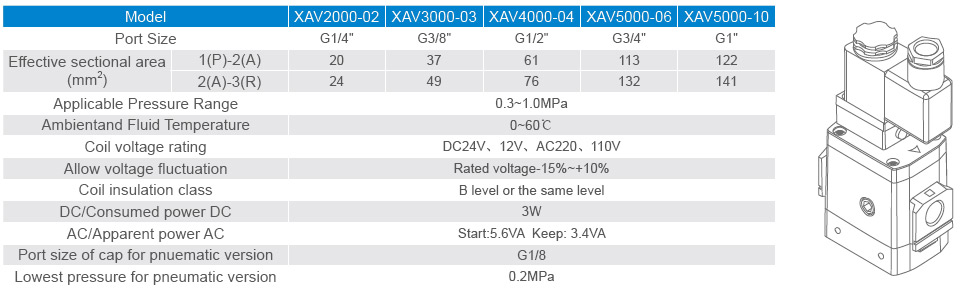

Specification
This is a differential balanced valve automatically opens the air port fully when the downstream pressure iss anout 50% of the upstream pressure.Without a pilot,the upstream air flows downstream through the regulation needle.When an external or pneumatic solenoid signal is generated,the valve opens the main port create full flow.It doesn't relieve the downstream circuit.
