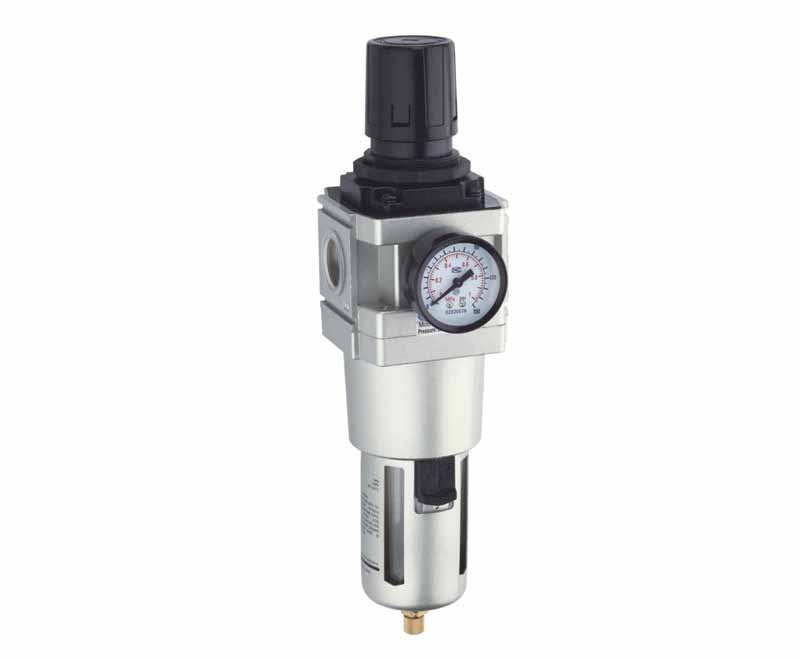

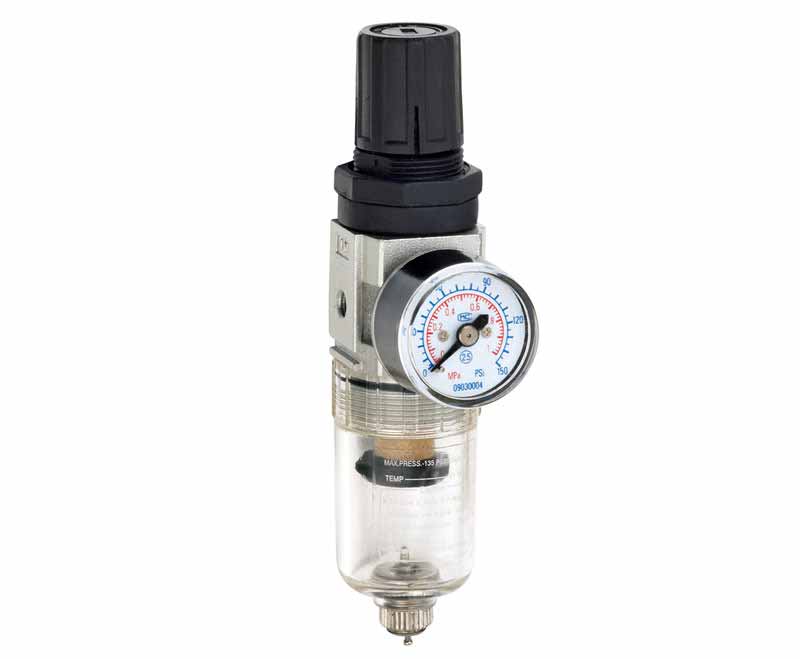

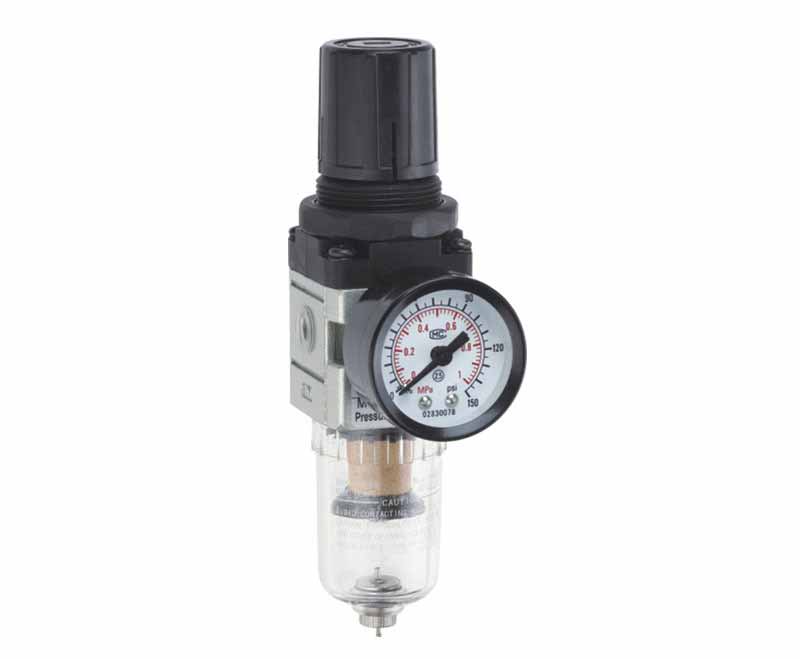

 Filter Precision
|
25µ
|
|||||||
|
Highest Working Pressure
|
1.0MPa
|
|||||||
|
Ensured pressure Resistance
|
1.5MPa
|
|||||||
|
Operating Temperature Range
|
5-60℃
|
|||||||
|
Container Material
|
Polycarbonate
|
|||||||
|
Value Type
|
With Overflow
|
|||||||
| Model |
XAW1000-M5 |
XAW2000-01 |
XAW2000-02 |
XAW3000-02 |
XAW3000-03 |
XAW4000-03 |
XAW4000-04 | XAW4000-06 | XAW5000-06 | XAW5000-10 |
| Rated Flow |
100 |
550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5000 | 5000 |
| Port Size | M5 | G1/8" | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Filter Precision | 25µ | |||||||||
| Highest Working Pressure | 1.0MPa | |||||||||
| Ensured pressure Resistance | 1.5MPa | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Range of Adjustable Pressure | 0.05-0.7MPa | 0.05-0.85MPa | ||||||||
| Container Material | Polycarbonate | |||||||||
| Protective Cover | Not Available | Available | ||||||||
| Drain Function | Differential Drain | Differential Drain.Automatic Drain | ||||||||
| Value Type | With Overflow | |||||||||
|

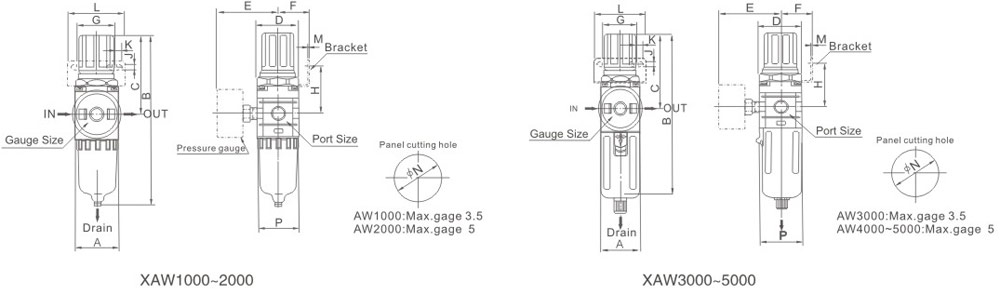

Model |
Port Size(G) |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
|
XAW1000 |
M5 |
25 |
109.5 |
50.5 |
25 |
26 |
25 |
28 |
30 |
4.5 |
6.5 |
40 |
2 |
20.5 |
28 |
|
XAW2000 |
G1/8"-G1/4" |
40 |
164.5 |
78 |
40 |
56.8 |
30 |
34 |
43.5 |
5.4 |
15.4 |
55 |
2.3 |
33.5 |
40 |
|
XAW3000 |
G1/4"-G3/8" |
53 |
211 |
92.5 |
53 |
60.8 |
39 |
40 |
46 |
6.5 |
8 |
53 |
2.3 |
42.5 |
56 |
|
XAW4000 |
G3/8"-1/2" |
70 |
262 |
112 |
70 |
70.5 |
49.2 |
54 |
53.5 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
73 |
|
XAW4000-06 |
G3-4" |
75 |
267 |
114 |
70 |
70.5 |
49.2 |
54 |
55.5 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
73 |
|
XAW5000 |
G3/4"-G1" |
90 |
338 |
116 |
90 |
75.5 |
49.5 |
54 |
62 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
90 |
