XC Series Stainless Steel Bevel Valve
SERIES: XC Series Stainless Steel Bevel Valve
XC Series Stainless Steel Bevel Valve
FEATURES
 Port size
|
DN10-DN50 |
|
Thread
|
G3/8 G2" |
|
Welded
|
DIN11850 2 DIN11850 3 lSO2037 |
|
Valve bodv
|
CF8M |
|
Actyator
|
CF8 |
|
Seat seals
|
PTFE |
Ordering Code
Specification
| Model | XC10-50SC/SO/DC/DF |
| Port size | DN10-DN50 |
| Thread | G3/8 G2" |
| Welded | DIN11850 2 DIN11850 3 lSO2037 |
| Valve bodv | CF8M |
| Actuator | CF8 |
| Seat seals | PTFE |
| Stem seals | PTFE/FKM |
| Piston seals | FKM/NBR |
| Model | XC10-50SC/SO/DC/DF |
| Applicable medium | Water,liquid,neutral gas,water steam Slight corrosive gas and liquid |
| Temperature range | PTFE:-10 to +180℃ |
| Ambient temperature | -10℃ to +60℃ |
| Viscasity | max600mm2/s |
| Installation | Any position |
| Controlling medium | Air or neutral gas |
| Controlling pressure range | 0.3-1M |

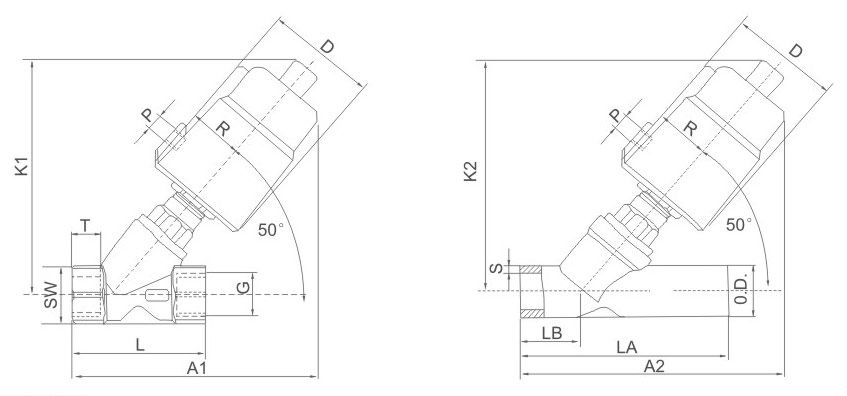

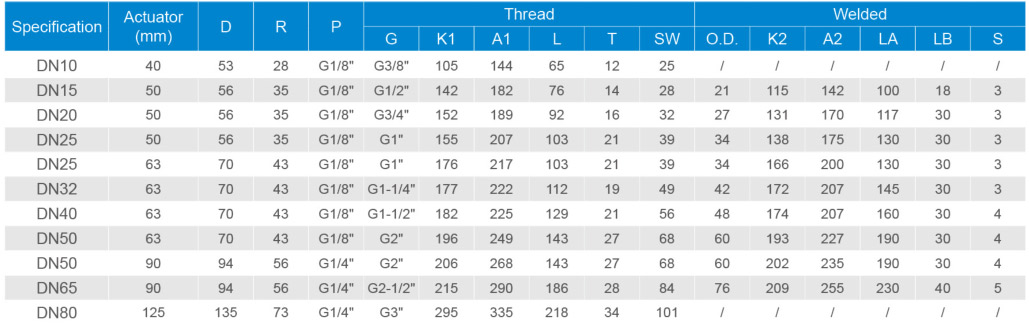

Overall Dimensions
