XMAC (Two Elements)
SERIES: XMA Series Metal cup F.R.L

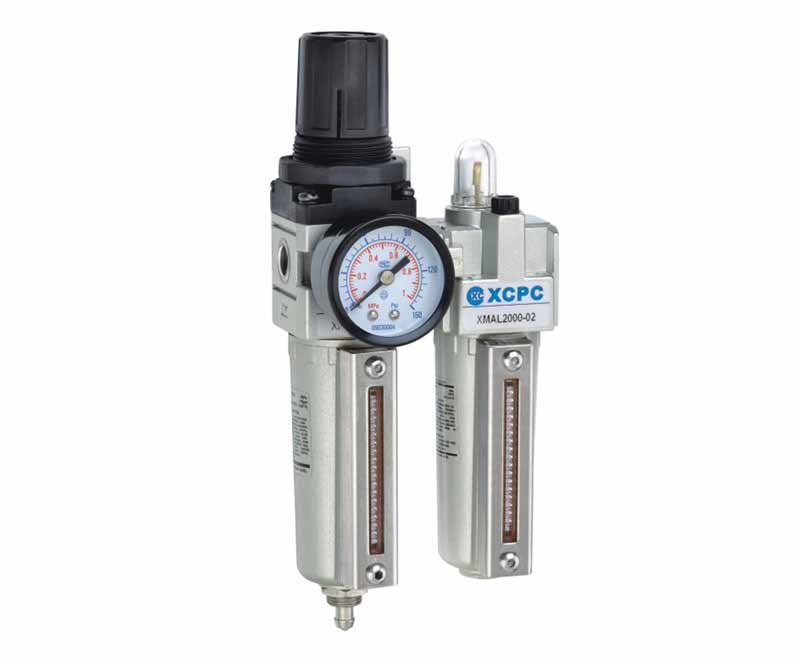

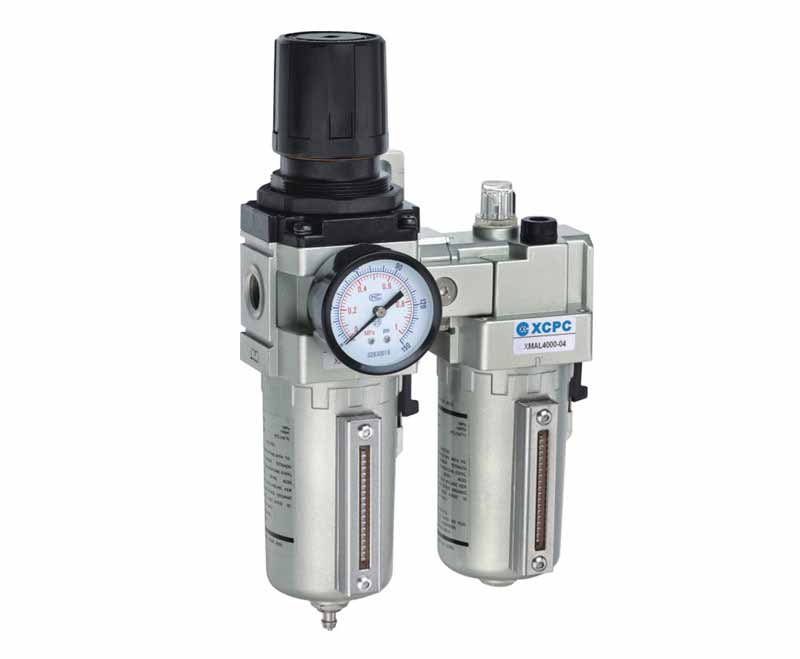

XMAC (Two Elements)
FEATURES
 Ensured Pressure Resistance
|
1.5MPa(15kgf/cm2) |
|
Highest Working Pressure
|
1.0MPa(10kgf/cm2)
|
|
Operating Temperature Range
|
5-60℃
|
|
Filter Precisio
|
25µ & 5µ & 50µ
|
|
ERecommended Oil Use
|
Turbie NO.1 Oil lSOVG32
|
|
Container Material
|
Aluminum Die Casting
|
SUB-SERIES
Ordering Code
Specification
| Model |
XMAC2010-01 |
XMAC2010-02 |
XMAC3010-02 |
XMAC3010-03 |
XMAC4010-03 |
XMAC4010-04 |
XMAC4010-06 | XMAC5010-06 | XMAC5010-10 | |
| Ensured Pressure Resistance |
1.5MPa(15kgf/cm2) |
|||||||||
| Highest Working Pressure | 1.0MPa(10kgf/cm2) | |||||||||
| Operating Temperature Range | 5-60℃ | |||||||||
| Filter Precisio | 25µ & 5µ & 50µ | |||||||||
| ERecommended Oil Use | Turbie NO.1 Oil lSOVG32 | |||||||||
| Container Material | Aluminum Die Casting | |||||||||
| Pressure Regulating Range | 0.05~0.85MPa(0.05~0.85kgf/cm2) | |||||||||
| Valve Type | With Overflow | |||||||||
| Assembly | Filter with pressure reducer | XMAW2000 | XMAW3000 | XMAW4000 | XMAW4000-06 | XMAW5000 | ||||
| Lubricator | XMAR2000 | XMAR3000 | XMAR4000 | XMAR4000-06 | XMAR5000 | |||||
| Rated Flow(L/min) | 500 | 1700 | 3000 | 3000 | 4000 | |||||
| Port Size(G) | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" | |

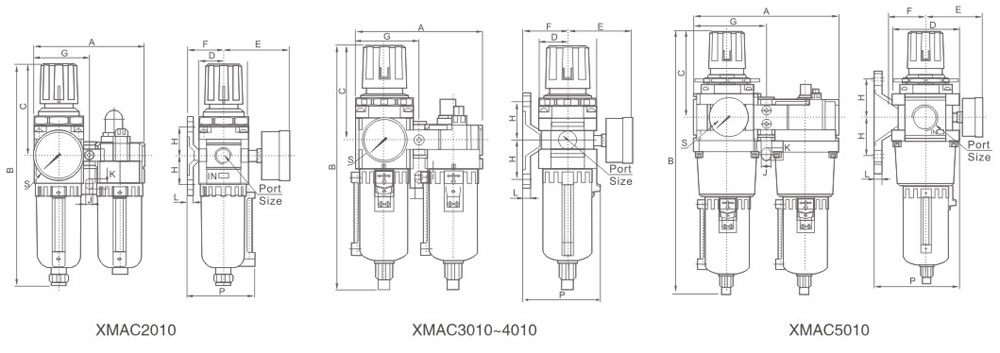

Overall Dimensions
|
Model
|
Port Size(G)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
P
|
S
|
|
XMAC2010
|
G1/8"-G1/4"
|
90
|
186.5
|
78
|
40
|
56.8
|
30
|
45
|
24
|
5.5
|
8.5
|
5
|
56
|
G1/8"
|
|
XMAC3010
|
G1/4"-G3/8"
|
117
|
232.5
|
92.5
|
53
|
60.8
|
41
|
58.5
|
35
|
7
|
11
|
7
|
70.5
|
G1/8"
|
|
XMAC4010
|
G1/2"
|
154
|
277
|
112
|
70
|
65.5
|
50
|
77
|
40
|
9
|
13
|
7
|
87.5
|
G1/4"
|
|
XMAC4010-06
|
G3/4"
|
164
|
282.5
|
114
|
70
|
69.5
|
50
|
82
|
40
|
9
|
13
|
7
|
87.5
|
G1/4"
|
|
XMAC5010
|
G3/4"-G1"
|
195
|
353.5
|
116
|
90
|
75.5
|
69.8
|
97.5
|
50
|
12
|
16
|
10.5
|
115
|
G1/4"
|
