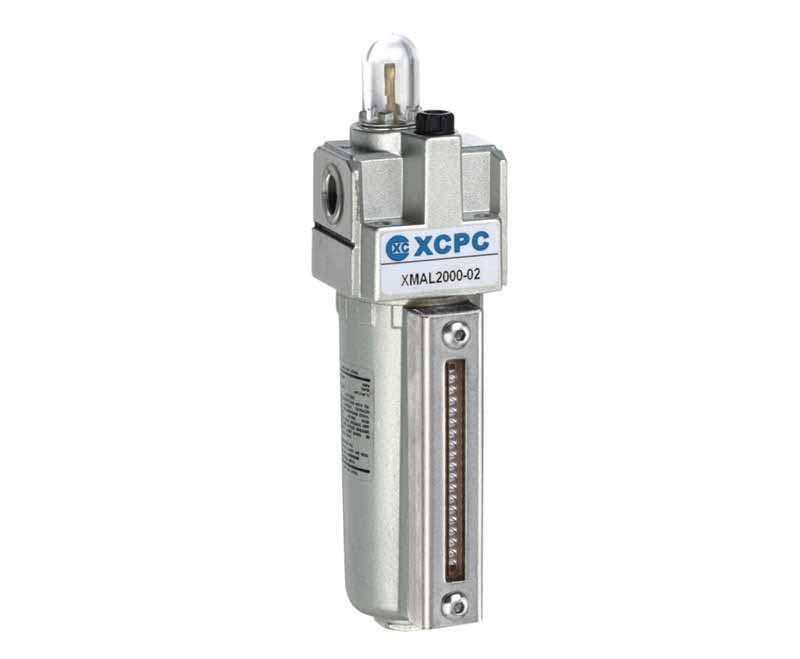

XMAL(Lubricator)
SERIES: XMA Series Metal cup F.R.L
XMAL(Lubricator)
FEATURES
 Ensured Pressure Resistance
|
1.5MPa(15kgf/cm2) |
|
Highest Working Pressure
|
1.0MPa(10kgf/cm2)
|
|
Operating Temperature Range
|
5-60℃
|
|
Recommended Oil Use
|
Turbie NO.1 Oil ISOVG32
|
|
Container Material
|
Aluminum Die Casting
|
SUB-SERIES
Ordering Code
Specification
| Model |
XMAL2000-01 |
XMAL2000-02 |
XMAL3000-02 |
XMAL3000-03 |
XMAL4000-03 |
XMAL4000-04 |
XMAL4000-06 | XMAL5000-06 | XMAL5000-10 |
| Ensured Pressure Resistance |
1.5MPa(15kgf/cm2) |
||||||||
| Highest Working Pressure | 1.0MPa(10kgf/cm2) | ||||||||
| Operating Temperature Range | 5-60℃ | ||||||||
| Recommended Oil Use | Turbie NO.1 Oil ISOVG32 | ||||||||
| Container Material | Aluminum Die Casting | ||||||||
| Minimal Flow of Oil Drop(L/Min) | 15 | 30 | 40 | 40 | 50 | 50 | 190 | ||
| Rated Flow(L/min) | 800 | 1700 | 5000 | 6300 | 7000 | ||||
| Port Size(G) | 1/8" | 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" |
| Bowl Capacity | 25 | 50 | 130 | 130 | 130 | ||||

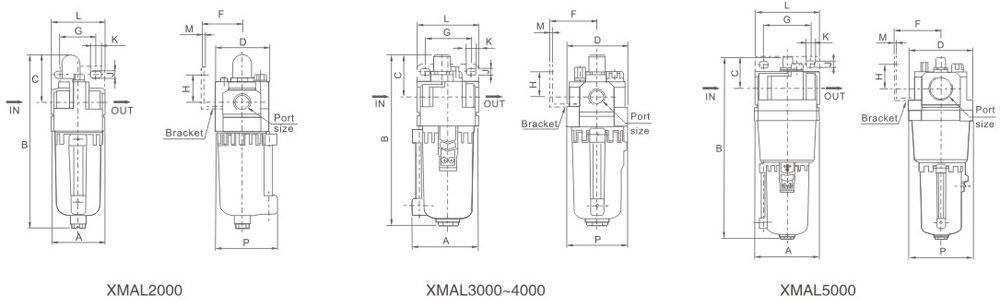

Overall Dimensions
|
Model
|
Port Size(G)
|
A
|
B
|
C
|
D
|
F
|
G
|
H
|
J
|
K
|
L
|
M
|
P
|
|
XMAL2000
|
G1/8"-G1/4"
|
40
|
137
|
39
|
50
|
30
|
27
|
22
|
5.4
|
8.4
|
40
|
2.3
|
46
|
|
XMAL3000
|
G1/4"-G3/8"
|
57.5
|
154.5
|
39
|
53
|
41
|
40
|
23
|
6.5
|
8
|
53
|
2.3
|
55
|
|
XMAL4000
|
G1/2"
|
74
|
185.5
|
41
|
70
|
50
|
54
|
26
|
8.5
|
10.5
|
70
|
2.3
|
72.5
|
|
XMAL4000-06
|
G3/4"
|
76.5
|
185.5
|
39
|
70
|
50
|
54
|
25
|
8.5
|
10.5
|
70
|
2.3
|
72.5
|
|
XMAL5000
|
G3/4"-G1"
|
90
|
262.5
|
45
|
90
|
66.5
|
66
|
35
|
11
|
13
|
90
|
3.2
|
90
|
