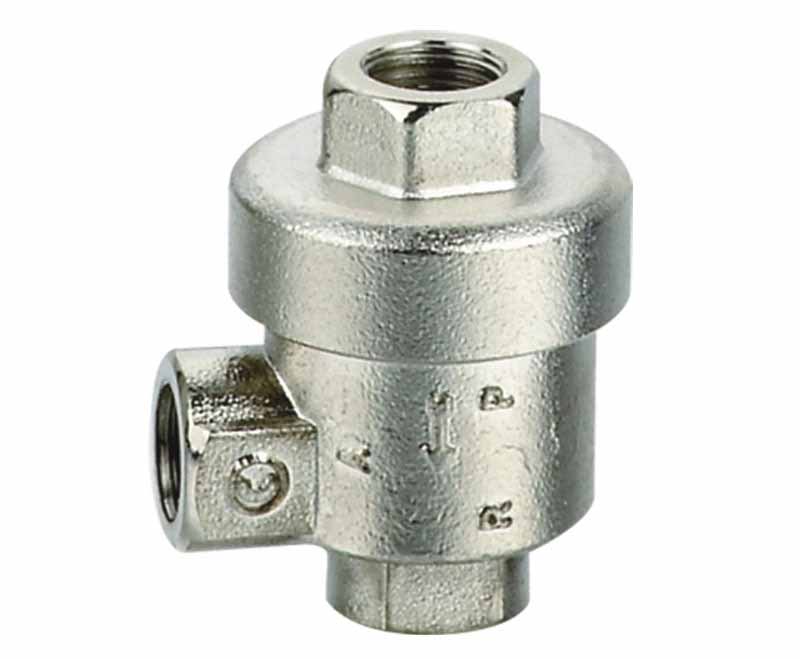

XQ Series Quick Exhaust Valve
SERIES: XQ Series Quick Exhaust Valve
XQ Series Quick Exhaust Valve
FEATURES
 Timerate(Ten Thousand Times)
|
≤200
|
|
Working Pressure Range
|
0.12~1.0MPa
|
Ordering Code
Specification
|
Model
|
XQ170600
|
XQ170800
|
XQ171000
|
XQ171500
|
|
Joint Threaded
|
G1/8"
|
G1/4"
|
G3/8"
|
G1/2"
|
|
Port Size
|
6mm
|
6mm
|
8mm
|
15mm
|
|
Flow
|
≥0.9m3/min
|
≥0.9m3/min
|
≥2.5m3/min
|
≥4.5m3/min
|
|
Timerate(Ten Thousand Times)
|
≤200
|
|||
|
Working Pressure Range
|
0.12~1.0MPa
|
|||
|
Exchange Times(S)
|
≤0.03
|
≤0.03
|
≤0.04
|
≤0.05
|
Overall Dimensions
|
Model
|
T
|
H
|
L
|
|
XQ170600
|
G1/8”
|
39
|
32
|
|
XQ170800
|
G1/4”
|
51
|
45
|
|
XQ171000
|
G3/8”
|
68
|
62
|
|
XQ171500
|
G1/2”
|
77
|
86
|
